SWIT K21 (in Flight Case)

REF: SWIT-K21-IN-FCASE
1.333 € tax excl.
tax incl.
Have you seen it cheaper? Ask us for an offer!

21.5" FHD 1500nit field monitor with HDR, V-mount compatibility, and flight case kit

Read more

For all products that are not in stock and / or cannot be added to the cart please contact us at info@cattscamera.com or through the contact form below.

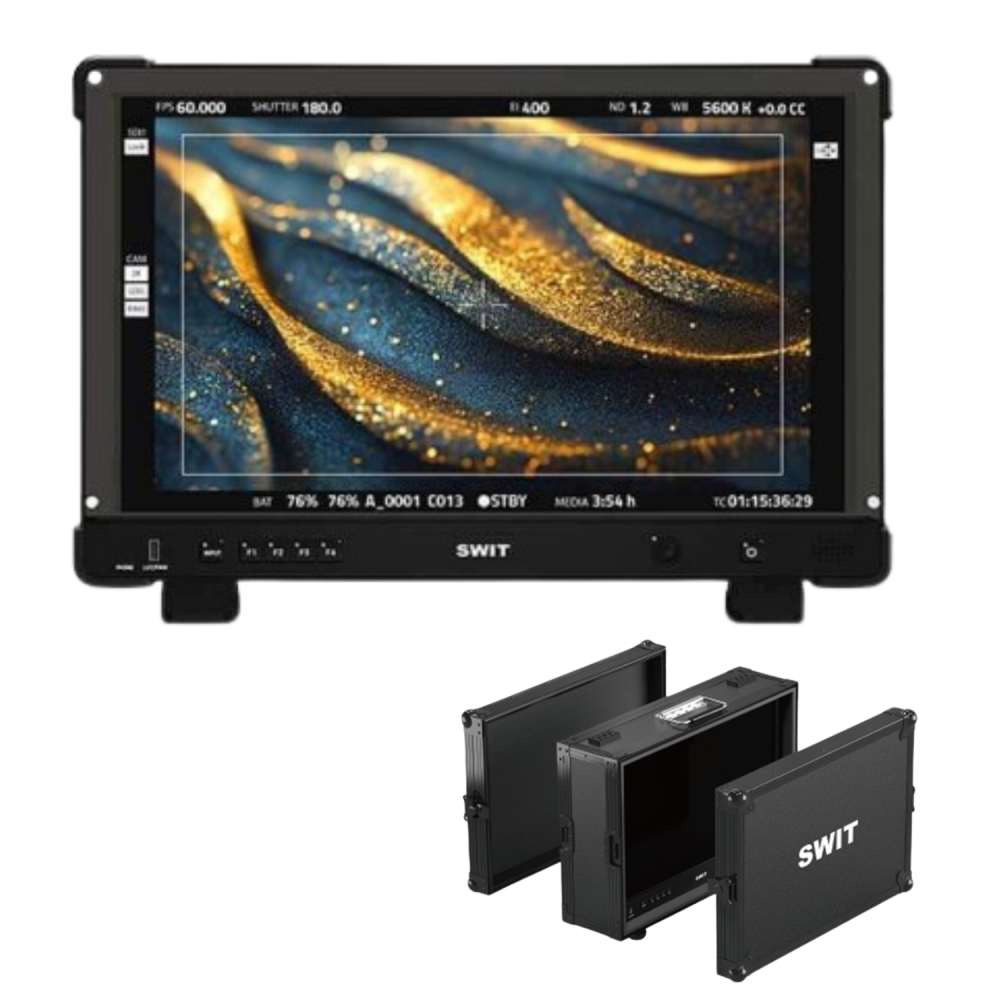

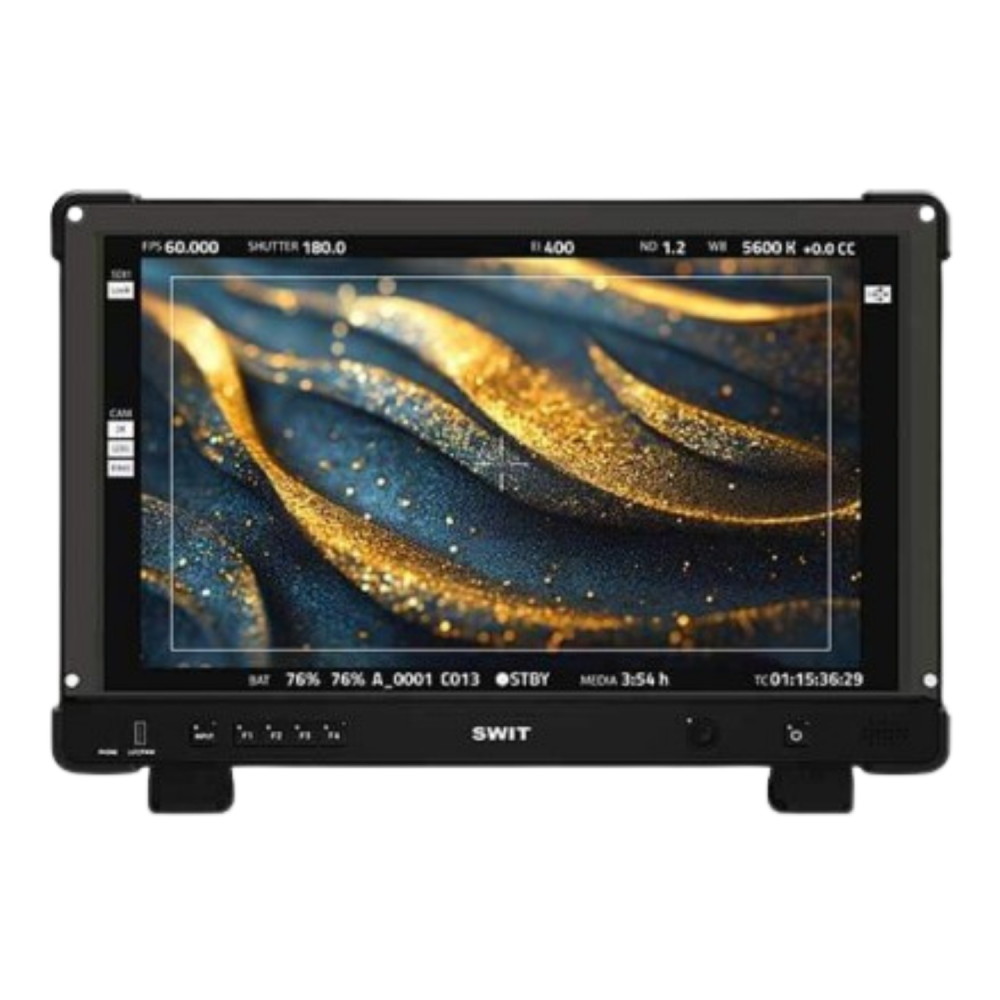

The SWIT K21 monitor stands out as an essential tool for high-end productions, combining a 21.5-inch IPS panel with Full HD resolution (1920×1080) and 1500 nits of brightness, ensuring flawless visibility even under intense sunlight. Its robust construction, with reinforced rubber corner guards and a quick-release screen protector, shields it from impacts and harsh conditions, making it ideal for outdoor shoots. Equipped with OLED-like contrast technology, it delivers deep blacks and precise details, while its slim design and included flight case make transport and setup on complex sets easy.

It features the Scene OS system, allowing up to 8 customizable scenes with instant access to tools such as waveform, vectorscope, or adjustable false color. Compatible with integrated Delog LUTs from leading brands (ARRI, RED, Sony) and the ability to load 10 custom 3D LUTs via USB-A, it also offers automatic calibration in just 2 minutes using an X-rite probe. It includes 2K/3G-SDI inputs, 4K HDMI, and multiple power options (V-mount, 4-pin XLR, AC).

Display

Panel type

IPS, LED backlight

Size

21.5 inches

Display area

476.06×267.78mm

Resolution

1920×1080, 16:9

Brightness

1500nits

Contrast

1100:1

Color depth

10-bit

Response time

25ms

Viewing angle

178°(H) /178°(V)

Input

BNC ×2

2K/3G/HD/SD-SDI input

HDMI® ×1

HDMI® 1.4 input

USB-A ×1

LUT, firmware input

USB-C ×1

Calibration probe input

Output

BNC ×2

2K/3G/HD/SD-SDI loop output

Analog audio

3.5mm headphone and speaker

Video Format

SDI

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

HDMI

4096×2160p (30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2160×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

AC Input

AC 100-240V, 50/60Hz

DC Input

4-pin XLR & V-mount battery 11-17V 3A

Power Consumption

≤55W

Working temperature

0°C~+40°C

Working humidity

10%~90%

Dimensions

Monitor: 531×345.7×92.7mm
With carton package: 615×200×445mm
With Flight case package: 660×360×530mm

Weight

Net 7.5kg
With carton package 9.7kg
With Flight case package 17.3kg

1x K21, 21.5" FHD 1500nit Field Monitor

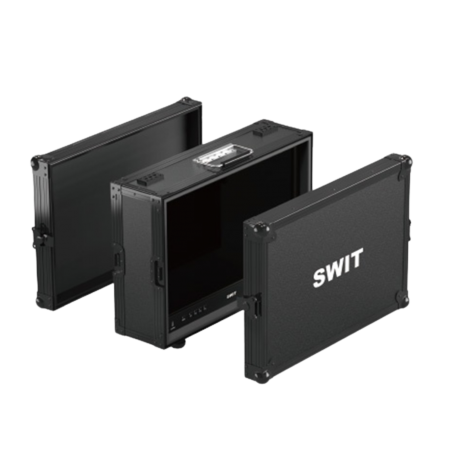

1x Flight Case

2x Top Cheese Plates

1x Screen Protective Glass

1x VESA to C-stand Adaptor

1x Sunhood for Flight Case
