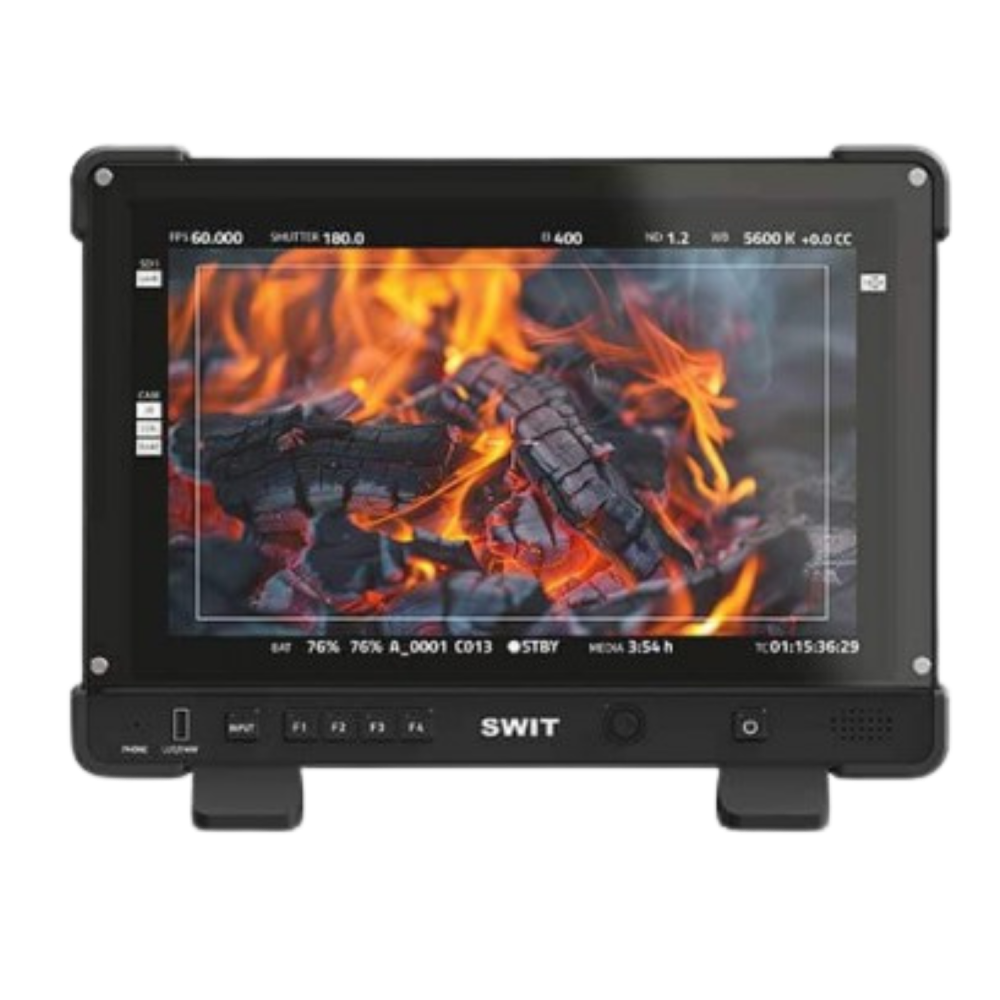

The SWIT K15 monitor is an all-in-one solution for demanding film and television productions. Equipped with a 15.4-inch IPS panel and 1920×1200 resolution in 10 bits, it offers a brightness of 1500 nits, ensuring optimal visibility even under direct sunlight. Its robust design features reinforced rubber corner guards, a quick-release screen protector, and a durable aluminum housing, making it ideal for outdoor shoots. With OLED-like contrast and deep blacks, it delivers exceptionally realistic images, while its slim profile and narrow bezel make it easy to transport and integrate into tight spaces.
The K15 stands out for its Scene OS system, which allows users to create up to 8 customizable scenes with shortcuts to essential tools such as waveform, vectorscope, or adjustable false color. It is compatible with built-in Delog LUTs from brands like ARRI, RED, and Sony, and also allows loading 10 custom 3D LUTs via USB-A. It includes 3G-SDI inputs, 4K HDMI, and versatile power options (V-mount, 4-pin XLR, and AC).
Panel type | IPS, LED backlight |
Size | 15.4 inches |
Display area | 330.62×206.64mm |
Resolution | 1920×1200, 16:10 |
Brightness | 1500nits |
Contrast | 1650:1 |
Color depth | 10-bit |
Response time | 18ms |
Viewing angle | 178°(H) /178°(V) |
BNC ×2 | 2K/3G/HD/SD-SDI input |
HDMI® ×1 | HDMI® 1.4 input |
USB-A ×1 | LUT, firmware input |
USB-C ×1 | Calibration probe input |
BNC ×2 | 2K/3G/HD/SD-SDI loop output |
Analog audio | 3.5mm headphone and speaker |
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
2048×1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) | |
HDMI | 4096×2160p (30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (30 / 29.97 / 25 / 24 / 23.98) | |
2160×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
1080i (60 / 59.94 / 50) | |
720p (60 / 59.94 / 50) |
AC Input | AC 100-240V, 50/60Hz |
DC Input | 4-pin XLR & V-mount battery 11-17V 3A |
Power Consumption | ≤45W |
Working temperature | 0°C~+40°C |
Working humidity | 10%~90% |
Dimensions | Monitor: 387.4×280×90.7mm |
Net weight | 5.3kg; With package 6.9kg |
x1 Screen Protective Glass
x2 Cheese Plate
x1 VESA to C-stand Adaptor
x1 Sunhood
x1 Carrying Case
