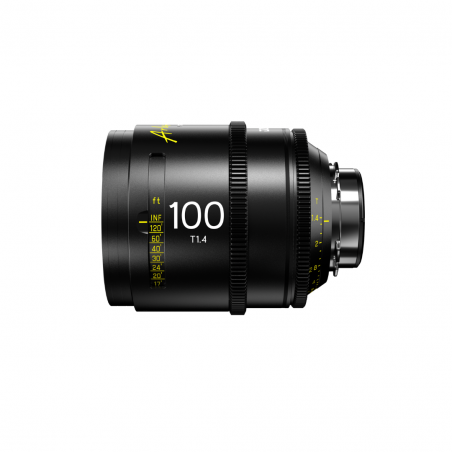

DZOFILM Arles 100mm T1.4 – Full-Frame/VV Cine Prime Lens for PL (metric)

REF: DZO-SAP100MPL

1.505,79 € tax excl. -19% ~~€1,859.00~~

€1,822.01

tax incl.

Have you seen it cheaper? Ask us for an offer!

T1.4 with 16-blade iris
Full frame / VistaVision, 46.5 mm circle
0.90 m close focus
PL mount with 95 mm front
Weight: 1.83 kg
Official distributor in Spain and Portugal: CATTS warranty and service

Add to wishlist

Reserve

Talk to sales support.

shuffleRelated products

Petición de reserva

Lo sentimos, ha ocurrido un error mientras se mandaba el formulario. Vuelve a intentarlo, si sigue sin funcionar contacta con el comerciante.

Debes aceptar la política de privacidad.

Gracias por tu interés. La petición ha sido enviada. Próximamente nos pondremos en contacto contigo.

Description

The Arles Primes from DZOFilm derive their name from the French town in which Vincent van Gogh garnered inspiration for some of his most influential work.

The Arles Primes feature a blistering fast T1.4 maximum aperture and Vista Vision coverage across the five focal lengths; 25mm, 35mm, 50mm, 75mm, and 100mm. The relatively compact size and weight provide versatility usually reserved for much higher priced cinema lenses. Industry standard focus and iris gears with consistent position across the set make the Arles a convenient choice for professional cinematography. A common 95mm front ring provides a familiar mounting point for standard matte boxes and filter trays.

Features

Focal Length	14 mm	21 mm	25 mm	35 mm	40 mm	50 mm	75 mm	100 mm	135 mm	180 mm
Colour	Black
Mount	PL / LPL / EF
Aperture	T1.9-T22	T1.4-T22							T1.8-T22	T2.4-T22
Image Circle	φ46.5mm (VV/FF)
Construction of Optics	15 Elements in 12 Groups	14 Elements in 12 Groups			13 Elements in 11 Groups	13 Elements in 9 Groups		13 Elements in 8 Groups	12 Elements in 8 Groups	12 Elements in 9 Groups
Flange Distance	52mm (PL) /44mm (EF)
Angle of view (horizontal, diagonal, vertical)	109° / 72° / 116°	89° / 54° / 96°	80° / 47° / 87°	61° / 34° / 67°	56° / 31° / 61°	45° / 25° / 50°	30° / 16° / 34°	23° / 12° / 26°	17° / 9° / 19°	13° / 7° / 15°
Close Focus (from sensor plane)	0.28m / 11in	0.33m / 1ft1in	0.35m / 1ft2in		0.4m / 1ft4in	0.5m / 1ft7in	0.75m / 2ft6in	0.9m / 2ft11in	0.98m/3ft3in	1.07m/3ft6in
Iris Control	Manual (65°)	Manual (77°)		Manual (80°)	Manual (83°)	Manual (80°)	Manual (82°)	Manual (90°)	Manual (88°)
Focus Control	Manual (270°)
Front Dia.	φ95mm/3.74"
Length (from lens front to flange plane)	121mm / 4.76''(PL) 129mm / 5.08"(EF)								130mm / 5.12" (PL) 138mm / 5.43" (LPL/EF)
Iris Blade	16
Filter Size	/	M86
Gear Pitch	0.8 Mod
Material	Aluminum Alloy
Weight (Product)	≈1646g	≈1500g	≈1490g	≈1650g	≈1633g	≈1688g	≈1662g	≈1830g	≈1846g	≈1675g
