Video

 - Video Outputs:

     - 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

     - 1 x HDMI 1.4b Type-A receptacle

 - Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

 - Color Sampling

     - SDI: YCbCr 4:2:2, 10-bit

    - HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

 - Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

     - 4Kp23.98/24/25/29.97/30 (HDMI only)

     - 1080p23.98/24/25/29.97/30/50/59.94/60

     - 1080psf23.98/24/25/29.97/30

     - 1080i50/59.94/60

     - 720p50/59.94/60

     - 480p59.94 576p50

     - 480i(NTSC)/576i(PAL)

Video Processing

 - Video Compression: Visually Lossless

 - Test Pattern Generator Support: Yes

 - Spectrum Analyzer: Yes

 - Color Correction: 17x17x17 3D LUT (supports 10-bit color)

Audio Processing

 - Audio Compression: 48kHz 24-bit PCM

Outputs

 - Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Physical

 - Dimensions: 122mm x 94mm x 27mm

 - Weight: 292g (10.3oz)

 - Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

 - Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

 - Operating Temperature: 0-40ºC

Interfaces

 - Configuration Interfaces: OSD with Menu, Joystick Navigation

 - Switches: On/Off Switch

 - Mobile App: Bolt App

 - Desktop App: Bolt Manager application for OSX & Windows

 - Usb Interface Functionality: Upgrade via Micro-USB

 - Bluetooth: 2.4 GHz

Network

 - Antennas: 5 External 2 dBi antennas (included)

 - Wireless:

      - Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz

      - DFS Frequencies: 5.270 ~ 5.670 GHz

 - Rf Channel Selection: Auto, Manual

 - Encryption: AES-256, RSA-1024 key exchange

 - Rf Power: 21 dbm EIRP

 - Range: Up to 750 ft, line of sight

 - Unicast Multicast: Can connect one Transmitter to up to 6 Receivers

 - Noise Rejection:

      - Can coexist with WiFi and 5GHz cordless phones

      - Can operate up to 6 sets in same location

 - Interoperability: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Power

 - Power Input: 2-Pin Circular locking Connector 6-28 VDC

 - Battery: V mount battery plate

 - Nominal Power Consumption: 11 Watts

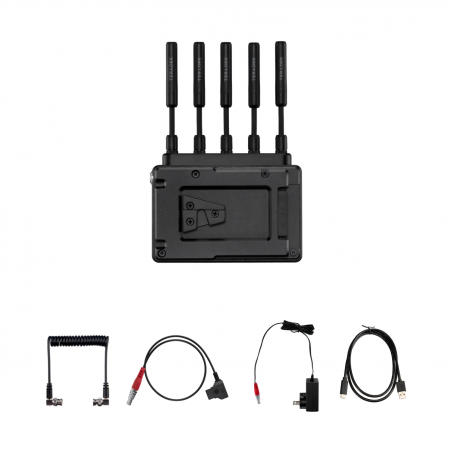

1x Bolt 6 LT 750 RX V-Mount

2x Bolt 4K LT RX Battery Cover

2x Screw Flat Head Phillips

1x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable

1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable

1x SDI - BNC to BNC Cable, 10in

1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable

1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
