The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 LT video Transmitter and Receiver.

Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference.

And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

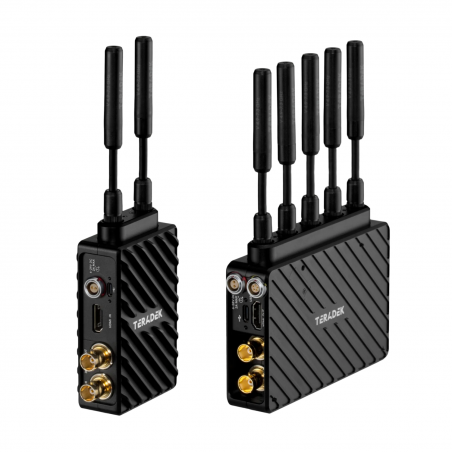

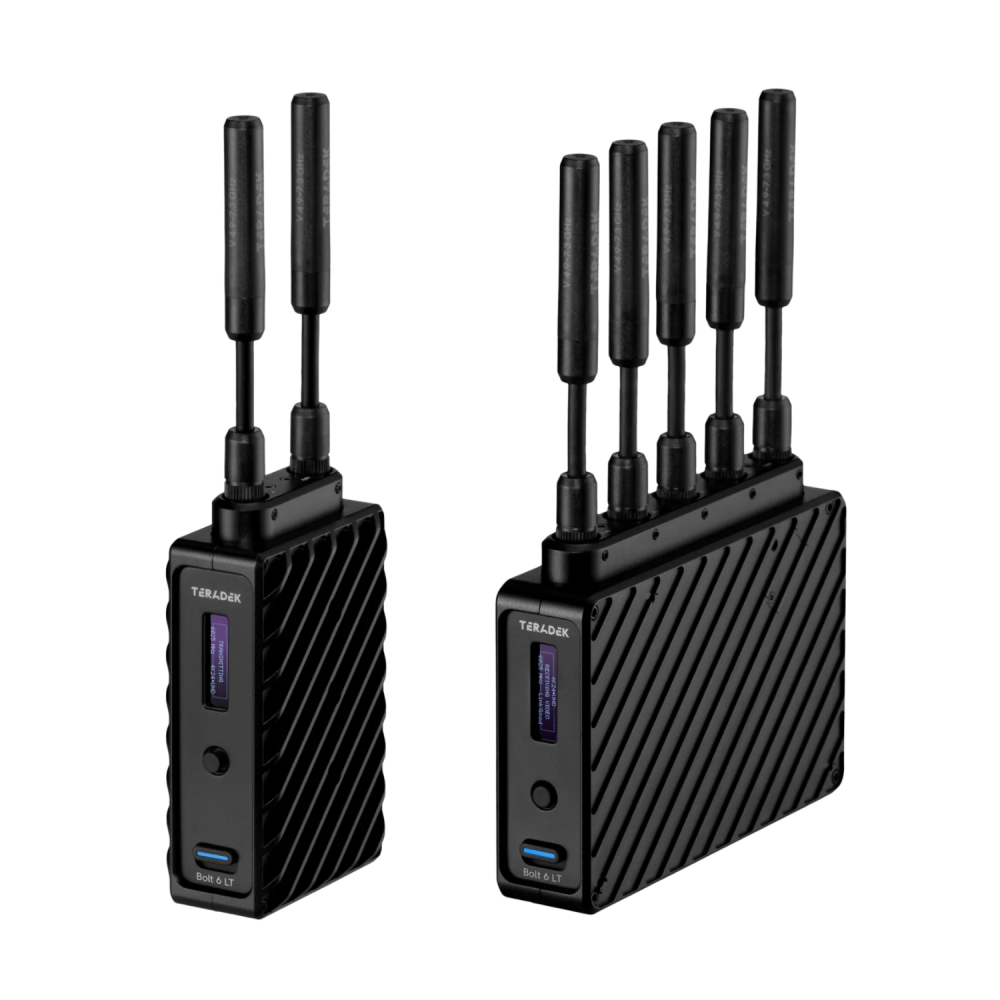

The included Transmitter, the most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft.

Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input and outputs, you can also select the Bolt 6 LT HDMI model if your production needs require HDMI only.

About 6GHz

Wifi routers, cell phones, IOT devices, and competitor wireless video systems are among the many devices that use the 5GHz frequency to communicate wirelessly, making it a highly crowded space where you’ll likely encounter frequent interference and even video dropouts.

Bolt 6 uses the newly opened 6GHz wireless frequency for a dramatically quieter wireless environment (though it can still be set up in 5GHz Mode for backwards compatibility).

In 6GHz Mode, Bolt 6 users will access faster connections and less interference for a better wireless experience.6GHz frequency is now available in the US and Canada under UNII-5 government specifications.

More countries will open the 6GHz frequency in 2023.

Bolt 6 LT 750 TX

Video

 - Video Inputs:

      - 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

      - 1x HDMI 1.4b Type-A receptacle

 - Video Outputs:

      - 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

      - Sdi Ancillary Data Support

      - Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

 - Color Sampling

      - SDI: YCbCr 4:2:2, 10-bit

      - HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

 - Delay Tx To Rx: <0.001sec

 - Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

Supported Resolutions

      - 4Kp23.98/24/25/29.97/30 (HDMI only)

      - 1080p23.98/24/25/29.97/30/50/59.94/60

      - 1080psf23.98/24/25/29.97/30

      - 1080i50/59.94/60

      - 720p50/59.94/60

      - 480p59.94 576p50

      - 480i(NTSC)/576i(PAL)

Video Processing

 - Video Compression: Visually Lossless

 - Color Correction: None

Audio Processing

 - Audio Compression: 48kHz 24-bit PCM

Inputs

 - Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

Physical

 - Dimensions: 60mm x 103mm x 33mm

 - Weight: 206g (7.3oz)

 - Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

 - Mountability: Multiple mounting options with 1/4"x20 and M3 holes

 - Operating Temperature: 0-40ºC

Interfaces

 - Configuration Interfaces: OSD with Menu, Joystick Navigation

 - Switches: On/Off Switch

 - Mobile App: Bolt App

 - Desktop App: Bolt Manager application for OSX & Windows

 - Usb Interface Functionality: Upgrade via Micro-USB

 - Bluetooth: 2.4 GHz

Network

 - Antennas: 2 External 2dBi antennas (included)

 - Wireless

      - Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz

     - DFS Frequencies: 5.270 ~ 5.670 GHz

 - Rf Channel Selection: Auto, Manual

 - Encryption: AES-256, RSA-1024 key exchange

 - Rf Power: 23 dbm EIRP

 - Range: Up to 750 ft, line of sight

 - Unicast Multicast: Can connect one Transmitter to up to 6 Receivers

 - Noise Rejection:

     - Can coexist with WiFi and 5GHz cordless phones

     - Can operate up to 6 sets in same location

 - Interoperability: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Power

 - Power Input: 2-Pin Circular locking Connector 6-28 VDC

 - Battery: None, optional Sony/Canon dual battery plate

 - Nominal Power Consumption: 9 Watts

Bolt 6 LT 750 RX

Video

 - Video Outputs:

     - 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

     - 1 x HDMI 1.4b Type-A receptacle

 - Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

 - Color Sampling

     - SDI: YCbCr 4:2:2, 10-bit

    - HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

 - Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output

Supported Resolutions

     - 4Kp23.98/24/25/29.97/30 (HDMI only)

     - 1080p23.98/24/25/29.97/30/50/59.94/60

     - 1080psf23.98/24/25/29.97/30

     - 1080i50/59.94/60

     - 720p50/59.94/60

     - 480p59.94 576p50

     - 480i(NTSC)/576i(PAL)

Video Processing

 - Video Compression: Visually Lossless

 - Test Pattern Generator Support: Yes

 - Spectrum Analyzer: Yes

 - Color Correction: 17x17x17 3D LUT (supports 10-bit color)

Audio Processing

 - Audio Compression: 48kHz 24-bit PCM

Outputs

 - Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Physical

 - Dimensions: 122mm x 94mm x 27mm

 - Weight: 292g (10.3oz)

 - Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

 - Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes

 - Operating Temperature: 0-40ºC

Interfaces

 - Configuration Interfaces: OSD with Menu, Joystick Navigation

 - Switches: On/Off Switch

 - Mobile App: Bolt App

 - Desktop App: Bolt Manager application for OSX & Windows

 - Usb Interface Functionality: Upgrade via Micro-USB

 - Bluetooth: 2.4 GHz

Network

 - Antennas: 5 External 2 dBi antennas (included)

 - Wireless:

      - Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz

      - DFS Frequencies: 5.270 ~ 5.670 GHz

 - Rf Channel Selection: Auto, Manual

 - Encryption: AES-256, RSA-1024 key exchange

 - Rf Power: 21 dbm EIRP

 - Range: Up to 750 ft, line of sight

 - Unicast Multicast: Can connect one Transmitter to up to 6 Receivers

 - Noise Rejection:

      - Can coexist with WiFi and 5GHz cordless phones

      - Can operate up to 6 sets in same location

 - Interoperability: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Power

 - Power Input: 2-Pin Circular locking Connector 6-28 VDC

 - Battery: None, optional Gold or V mount battery plate

 - Nominal Power Consumption: 11 Watts

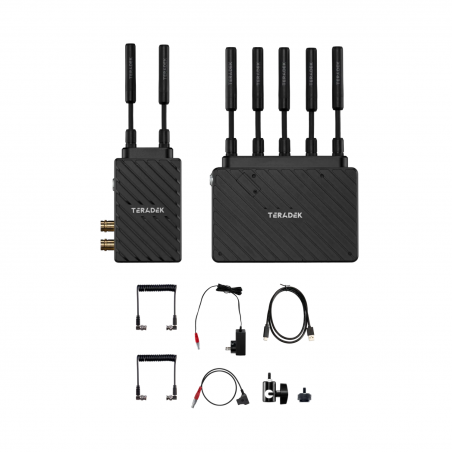

1x Bolt 6 LT 750 RX

1x Lightstand Adapter ¼-20in

1x Hot Shoe Adaptor

1x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable

2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in/46cm Cable

2x SDI - BNC to BNC Cable, 10in

1x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable

1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
