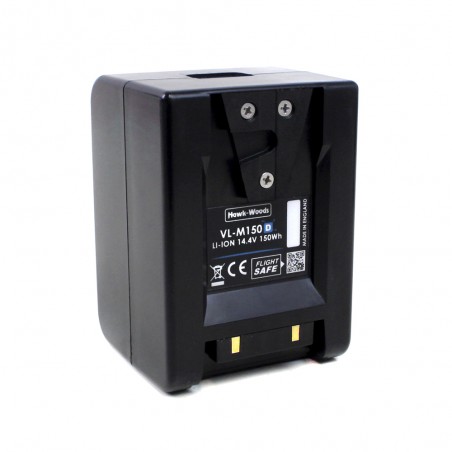

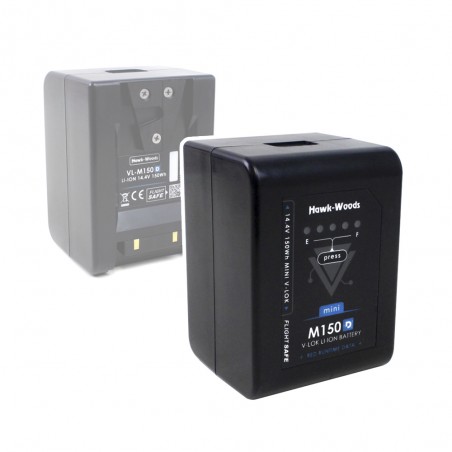

Hawk-Woods 150Wh Mini V-Lok (V-mount) Data Battery is the first addition to the Mini V-Lok Data range.
The mini battery system offers all the features of the standard size V-Lok battery in a small, lightweight V-Lok case. It is the perfect solution if you want long run times but want to save weight and space.
This particular D version has an auto reset PCM, which means that if the battery shuts down and goes into protection mode, there is no need to connect it to a charger to reset the board as it does it automatically. This is perfect for shooting in the field where a charger is not always accessible.
It also has an SMBUS communication system that is compatible with REDcameras and any equipment that uses SMBUS. This system will allow the user to easily see the percentage of battery power on the display of the equipment they are using, this intelligent software will also give a time remaining for a more accurate battery charge level.
These batteries will work in all existing equipment and chargers.
Within the range of 100Wh - 160Wh, flight-safe battery inside carry-on luggage and can carry a maximum of two giving 300Wh of power for travel.
Built-in charge indicator, thermal protection, short-circuit protection and shock and voltage protection are still features to highlight.
Finally, the battery has the advantage of 1 Power-Con output that will provide the rated voltage of the battery.
BATTERY WARNING.
The transport of batteries is subject to special restrictions.
For more information, please contact us at +34 917 865 627 or by mail at info@cattscamera.com
Opening hours: Monday to Friday from 09:30 to 14:30 and from 15:30 to 18:30
WARNING ABOUT BATTERIES.
The transport of batteries is subject to special restrictions.
For more information, please contact us on +34 917 865 627 or by mail at info@cattscamera.com
Opening hours: Monday to Friday from 09:30 to 14:30 and from 15:30 to 18:30
La Batería Mini V-Lok (V-mount) Data de 150Wh de Hawk-Woods es la primera que se añade a la gama Mini V-Lok Data.
El sistema de mini baterías ofrece todas las características de la batería V-Lok de tamaño estándar en una caja V-Lok pequeña y ligera. Es la solución perfecta si desea largos tiempos de funcionamiento pero quiere ahorrar peso y espacio.
Esta versión D en particular tiene un PCM de restablecimiento automático, lo que significa que si la batería se apaga y entra en modo de protección, no hay necesidad de conectarla a un cargador para restablecer la placa, ya que lo hace automáticamente. Esto es perfecto para filmar en el campo donde un cargador no es siempre accesible.
También cuenta con un sistema de comunicación SMBUS que es compatible con las cámaras RED y con cualquier equipo que utilice SMBUS. Este sistema permitirá al usuario ver fácilmente el porcentaje de energía de las baterías en la pantalla del equipo que está utilizando, este software inteligente también dará un tiempo restante para un nivel de carga de la batería más preciso.
Estas baterías funcionarán en todos los equipos y cargadores existentes.
Dentro del rango de 100Wh - 160Wh, batería segura para el vuelo dentro del equipaje de mano y se pueden llevar un máximo de dos dando 300Wh de energía para viajar.
El indicador de carga incorporado, la protección térmica, la protección contra cortocircuitos y la protección contra descargas y tensiones siguen siendo características a destacar.
Por último, la batería tiene la ventaja de contar con 1 salida Power-Con que proporcionará el voltaje nominal de la batería.
ADVERTENCIA SOBRE LAS BATERÍAS.
El transporte de baterías esta sujeto a restricciones especiales.
Para más información, consúltanos en el +34 917 865 627 o por correo en info@cattscamera.com
Horario: De Lunes a Viernes de 09:30 a 14:30 y de 15:30 a 18:30
WARNING ABOUT BATTERIES.
The transport of batteries is subject to special restrictions.
For more information, please contact us on +34 917 865 627 or by mail at info@cattscamera.com
Opening hours: Monday to Friday from 09:30 to 14:30 and from 15:30 to 18:30
Especificaciones
Modelo:VL-M150D
Tipo:V-Lok
Tipo de montura:V-Mount
Química:Ion-Litio
Peso:710g
Tamaño:10 x 7 x 6,6 cm
Tensión nominal:14.4v
Tensión máxima:16.8v
Tensión final:11v
Potencia:150Wh
Capacidad:10.4Ah
Corriente:12A
Número de tomas D: 1
1 Batería Mini V-Lok (V-mount) Data de 150Wh VL-M150D
