cforce MAX Basic Kit 15mm

REF: CMOT-KK.0055606

Sin stock. Reservar

2.980 € tax excl.

€3,605.80

tax incl.

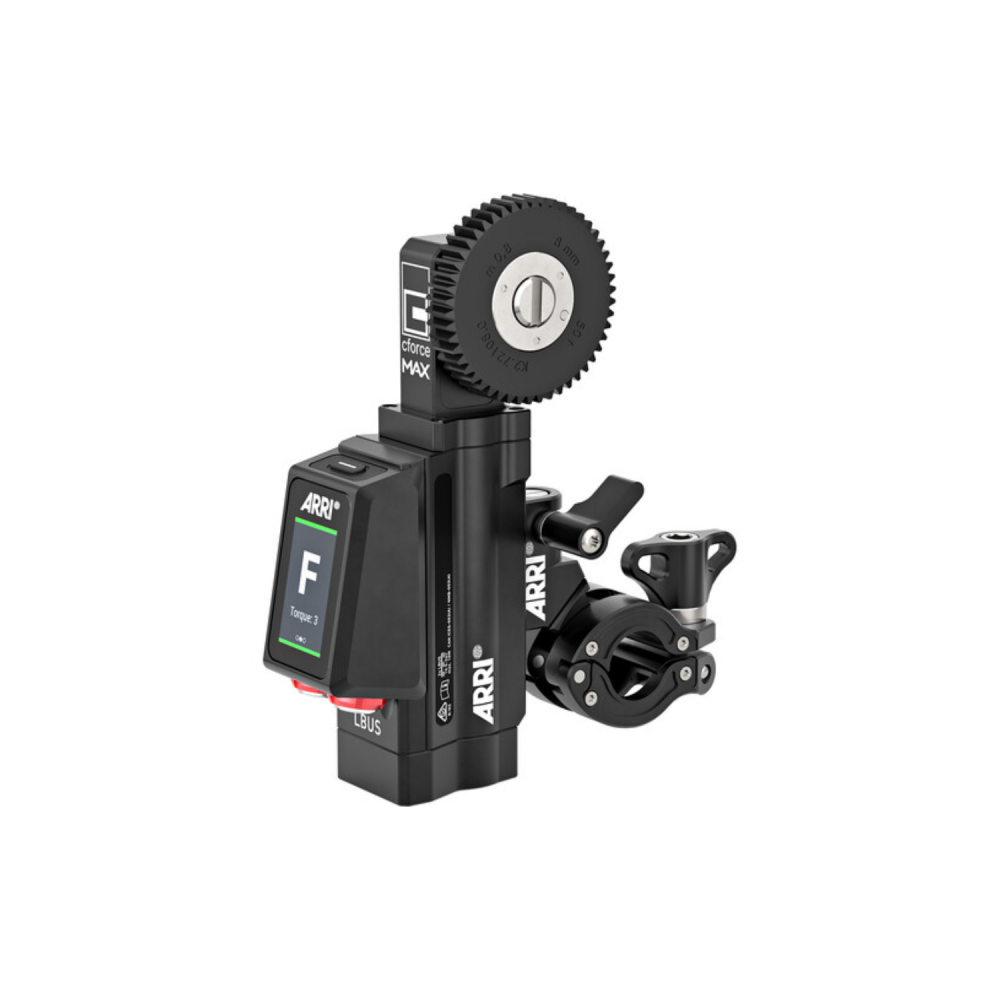

This cforce MAX kit includes the motor, gearbox, and MRC-1 clamp, offering high speed, power, a touchscreen, Soft mode, and four torque levels in a compact design suitable for any setup.

Reserva producto

Add to wishlist

shuffle Ver productos relacionados
local_shipping Envío rápido a toda España
lock Pago 100% seguro
help_outline ¿Dudas? Habla con nuestro equipo

Petición de reserva

Lo sentimos, ha ocurrido un error mientras se mandaba el formulario. Vuelve a intentarlo, si sigue sin funcionar contacta con el comerciante.

Debes aceptar la política de privacidad.

Gracias por tu interés. La petición ha sido enviada. Próximamente nos pondremos en contacto contigo.

Description

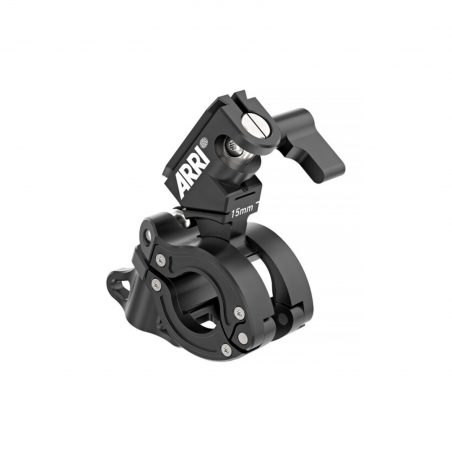

MRC-1 15mm Rod Clamp

The MRC-1 is a native clamp for 15mm rods (LWS) designed to deliver superior clamping torque and total stability. Its smart design allows for tool-free installation and ultra-flexible positioning with 200° of tilt. Plus, its swivel lever is ambidextrous, making it perfect for those tight rigs where every millimeter counts when mounting multiple motors.

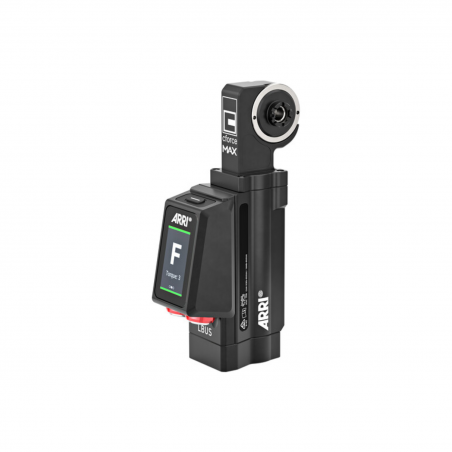

Power and Speed

If you’re looking for the perfect balance, the cforce MAX is what you need. With 1.0 Nm of torque and 400 rpm, it delivers twice the power and speed of the cforce mini motor, while being just 15% larger. Compared to the cforce plus motor, it’s twice as fast and packs the same power into a design that’s 15% smaller and lighter.

Versatile Touchscreen

The cforce MAX isn’t just powerful—it’s also highly intuitive. It comes equipped with an ultra-sensitive, weather-resistant touchscreen, designed with an icon-based interface that you can operate even while wearing gloves. From the screen, you can adjust the motor and system settings in a second. And for those who prefer a physical feel on the unit, the button on top gives you direct access to essential functions like calibration and axis selection without looking at the screen.

Features

Display
Panel Type	LCD
Size	Not Specified by Manufacturer
Touchscreen	Yes

Wireless
Wireless	Yes

Power
Power Source	Proprietary Interface
DC Input Power	10.5 to 34 VDC
Power Consumption	96 W (Maximum)

Physical
Mounting	1x Dovetail
Color	Black
Environmental Resistance	Water-Resistant (Unrated)
Operating Conditions	-4 to 122°F / -20 to 50°C up to 95% Humidity
Dimensions	4.4 x 2.4 x 1.2" / 112 x 60 x 30 mm
Weight	7.5 oz / 214 g
