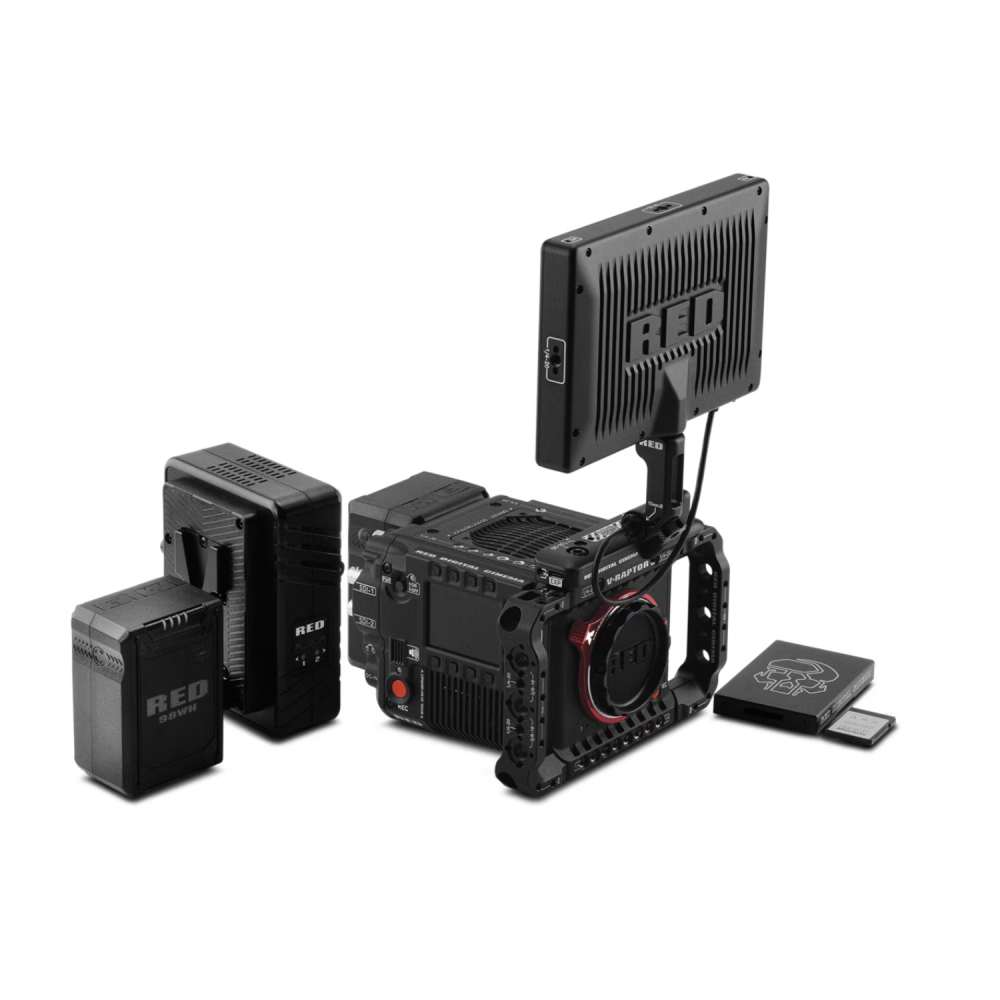

RED V-RAPTOR [X] 8K VV Starter Pack – Cinema Camera Kit, RF Mount

REF: RED-710-0409

30.725 € tax excl.

€37,177.25

tax incl.

Have you seen it cheaper? Ask us for an offer!

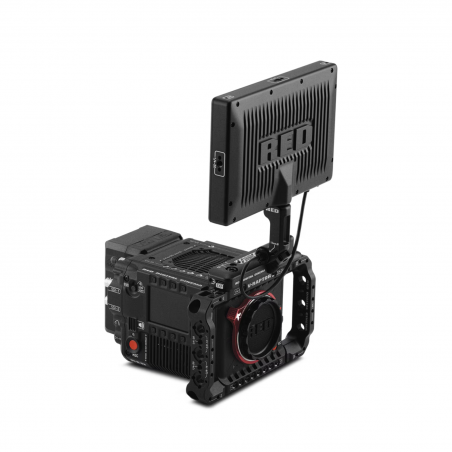

RED V-RAPTOR [X] 8K VV camera (RF mount): 8K VV full-frame global shutter sensor
1x RED PRO CFexpress v4 2TB card and v4 reader

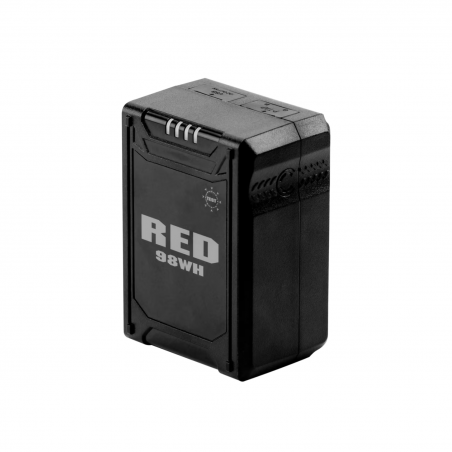

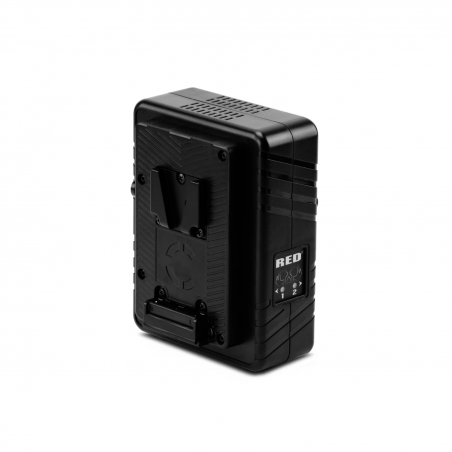

2x REDVOLT MICRO-V batteries and RED Compact Dual V-Lock charger

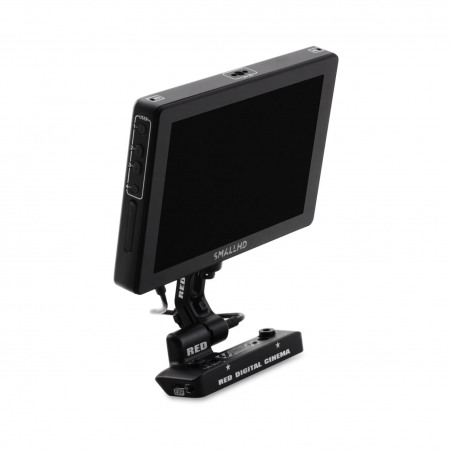

DSMC3 RED Touch 7" LCD
2x Wing Grips and EXT-to-timecode cable
Exclusive RED distributor for Spain and Portugal: CATTS warranty and service

More information: our blog · our YouTube video

Add to wishlist

Reserve

Talk to sales support.

shuffleRelated products

Petición de reserva

Lo sentimos, ha ocurrido un error mientras se mandaba el formulario. Vuelve a intentarlo, si sigue sin funcionar contacta con el comerciante.

Debes aceptar la política de privacidad.

Gracias por tu interés. La petición ha sido enviada. Próximamente nos pondremos en contacto contigo.

Description

The RED V-RAPTOR (X) 8K VV Starter Pack is the ultimate cine camera, combining the best features of REDs two camera families into one powerful and versatile device. With its advanced 8K VV sensor, the V-RAPTOR (X) offers exceptional frame rates, lowlight performance, and resolution, along with the global shutter advancements of KOMODO. Weighing just over 4lbs, this compact camera is the perfect all-purpose workhorse for any production.

The V-RAPTOR (X) sets a new standard as the first large format global shutter camera on the market. It boasts features such as 2x 12G SDIs for unique monitoring views, a locking Canon RF style lens mount for versatile lens selection, and CFexpress Type B media for up to 800MB/s formats, including 8K 120P. With improved in-camera audio pre-amps and a redesigned sensor cavity, the V-RAPTOR (X) builds upon the legacy of its predecessor, the V-RAPTOR.

Experience the power of RED Global Vision with the V-RAPTOR (X) 8K VV. This new suite of tools utilizes the global shutter sensor to provide even more flexibility and ease of use during production. With Extended Highlights, the camera can capture more detail in highlights for HDR finishes or softer roll-off for SDR. The V-RAPTOR (X) also features Phantom Track, which streamlines Virtual Production environments and allows for live monitoring of each sub-frame slice over SDI.

The V-RAPTOR (X) is also equipped with advanced connectivity solutions, making it IP connected and enabling features such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110. This makes the V-RAPTOR (X) a truly versatile and cutting-edge cine camera.

Rest assured that your V-RAPTOR (X) is protected with a two (2) year standard warranty. For even more peace of mind, the camera is also eligible for an Extended Warranty, which extends the standard warranty for two (2) additional years after the initial period expires. With the RED V-RAPTOR (X) 8K VV Starter Pack, you can have confidence in both the quality of your footage and the longevity of your camera.

Features

SENSOR TYPE	V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
EFFECTIVE PIXELS	8192 x 4320
SENSOR SIZE	40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE	17+ stops
MOUNT TYPE	Integrated locking RF mount with electronic communication Supports /i PL lenses with RED RF to PL Adapters Supports Canon EF Adapter with communication and other adapters based on the RF mount
MAX DATA RATES	Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE® RAW MAX FRAME RATES	120 fps at 8K 17:9, 150 fps at 8K 2.4:1 140 fps at 7K 17:9, 175 fps at 7K 2.4:1 160 fps at 6K 17:9, 200 fps at 6K 2.4:1 192 fps at 5K 17:9, 240 fps at 5K 2.4:1 240 fps at 4K 17:9, 300 fps at 4K 2.4:1 320 fps at 3K 17:9, 400 fps at 3K 2.4:1 480 fps at 2K 17:9, 600 fps at 2K 2.4:1
BEST AVAILABLE REDCODE® SETTINGS	REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps REDCODE LQ and ELQ at 8K 17:9 up to 120 fps REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps
REDCODE® RAW ACQUISITION FORMATS	8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9, 2:1, 2.4:1, 16:9, 1:1 4K 17:9, 2:1, 2.4:1, 16:9, 1:1 3K 17:9, 2:1, 2.4:1, 16:9, 1:1 2K 17:9, 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES	Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
CONSTRUCTION	Aluminum Alloy
DIMENSIONS	149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)
WEIGHT	4.03 lbs / 1.83 kg (without body cap and CFexpress card)
MEDIA TYPE	CFexpress Type B
BATTERY TYPE	Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT	11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE	0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE	–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY	0% to 85% non-condensing
RED GLOBAL VISION	Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios. Phantom Track recording mode to capture multiple LED instances as dedicated clips.
COLOR MANAGEMENT	Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import and adjustment of CDLs
AUDIO	Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz 3.5mm stereo headphone port
AUTOFOCUS	Phase Detect with Face Detection
IP CONNECTED	Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110. Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3 Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload
MONITOR OUTPUTS	Proprietary Top Accessory Port for Monitoring and Control Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS	DSMC3 RED Touch 7.0” LCD RED Compact EVF with DSMC3 Adapter A Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video)
ADDITIONAL I/O	Tri-Level Genlock Input via 9-Pin EXT LTC Timecode Input via 9-Pin EXT RS232 CTRL (using RCP2) via 9-Pin EXT
RED CONTROL & RED CONTROL PRO	Access full camera controls and live preview from iOS or Android devices Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C
