Quantum 27 Monitor

REF: SHD-16-2702

11.499 € tax excl.

€13,913.79

tax incl.

Have you seen it cheaper? Ask us for an offer!

QD-OLED (Quantum Dot OLED) 4K display, 1000 nits, 99% DCI-P3, four 12G-SDI inputs/outputs, with versatile PageOS.

Add to wishlist

Reserve

Talk to sales support.

shuffleRelated products

Petición de reserva

Lo sentimos, ha ocurrido un error mientras se mandaba el formulario. Vuelve a intentarlo, si sigue sin funcionar contacta con el comerciante.

Debes aceptar la política de privacidad.

Gracias por tu interés. La petición ha sido enviada. Próximamente nos pondremos en contacto contigo.

Description

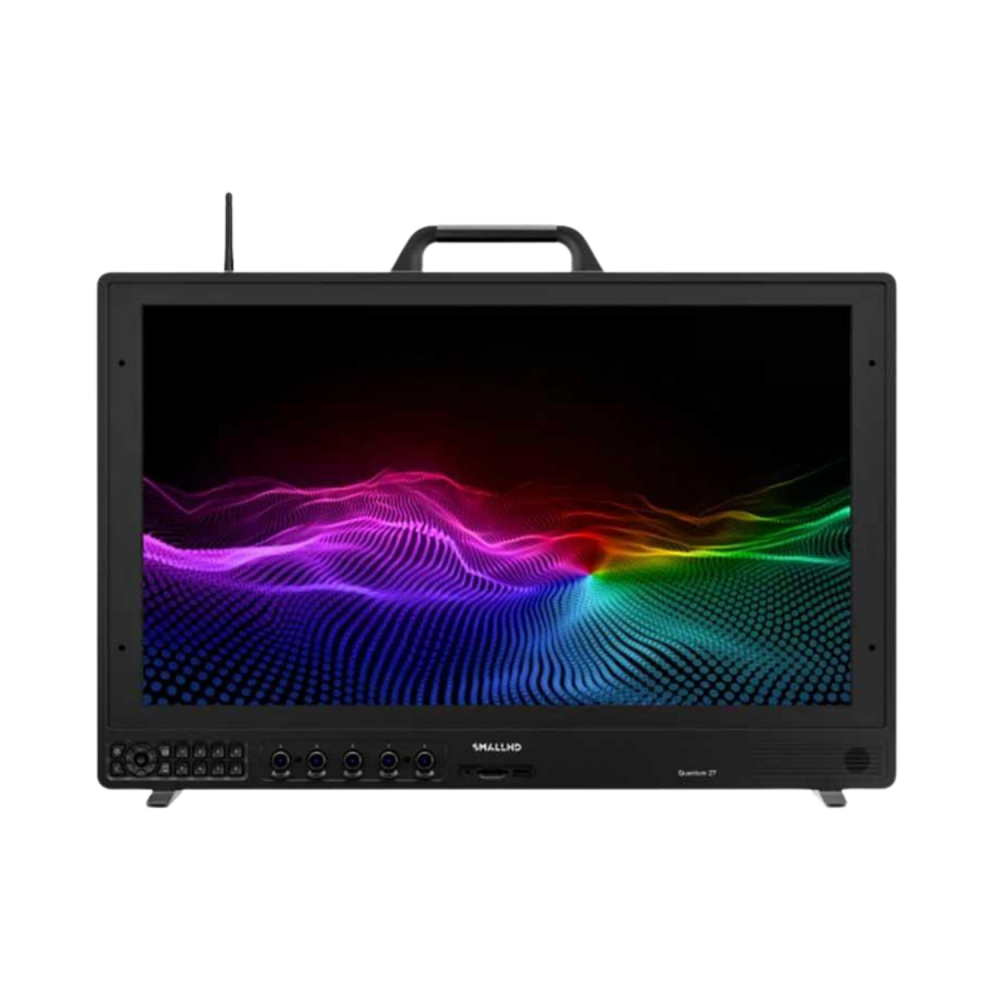

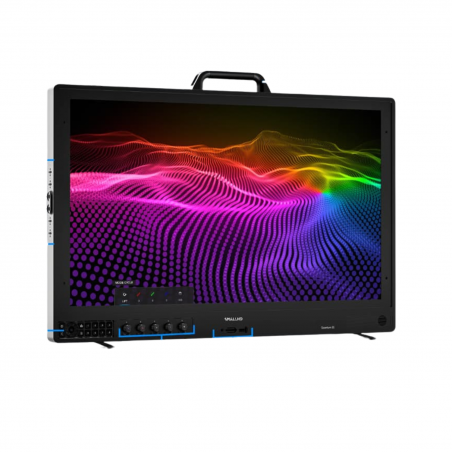

SmallHD Quantum 27 Professional Monitor

The SmallHD Quantum 27 is a 26.5-inch professional monitoring solution featuring QD-OLED (Quantum Dot OLED) . This 4K UHD display (3840 x 2160) offers 10-bit color processing, up to 1000 nits peak brightness, 99% DCI-P3 color coverage, and an impressive 1,500,000:1 contrast ratio in a lightweight 9.6kg chassis.

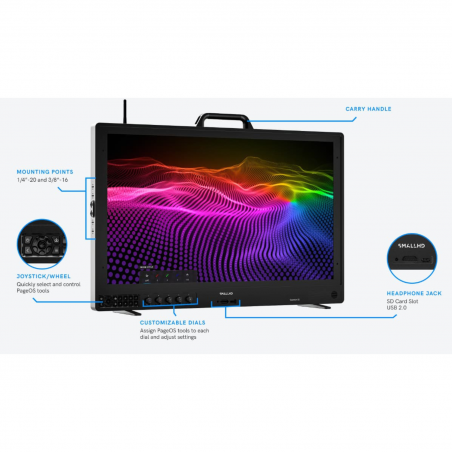

The monitor provides comprehensive connectivity with four 12G/6G/3G/HD-SDI inputs and outputs, built-in WiFi for wireless control, and DC power input with 2-pin power output for professional workflows. Key features include the intuitive PageOS operating system with customizable interface, haptic dial controls with touch-activated illumination, 100mm VESA mount compatibility, dovetail mounting rail for batteries and accessories, and optional top handle for mobility.

Designed for both studio and field applications, the Quantum 27 delivers professional-grade performance in a portable format that's ready for color-critical studio and broadcast desktop use while offering the flexibility for on-set mobility and accessory attachments.

Features

Specification	Value
Panel Type	QD-OLED
Screen Size	26.5" / 67.3cm
Resolution	3840 x 2160
Brightness	Up to 1000nits (Peak @ 3% APL)
HDR Preview (230-250 Nits Max)	1000 nit (< 3%) Images with an average luminance dimming when set to 1000 nits 230-250 Nits (< 100%) Images with an average luminance of 230-250 nits (Depending on Calibration)
Contrast	1,500,000:1
Gamut Coverage	99% DCI-P3
Color Depth	10-bit
Backlight Type	QD-OLED
Video Resolution	SDI: 4K: 4096x2160p: 23.98/24/29.97/30/47.95/48/50/59.94/60 UHD: 3840x2160: 23.97/24/25/29.97/30/50/59.94/60 2K: 2048x1080p: 23.97/24/25/30 HD: 1080psf: 23.97/24/25 1080i: 50/59.97/60 1080p: 23.98/24/25/29.97/30 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 480p: 59.94/60/100/119.88/120 576p: 50/100 480i: 59.94/60/119.88/120 576i: 50/100 HDMI Supports YCC 4:2:2 @ 8bits, 8/10/12bit color in RGB & YCC 4:4:4 Up to 4Kp60
Input Signal	4x 12G/6G/3G/HD-SDI 1x HDMI 2.0 (4K60)
Output Signal	4x 12G/6G/3G/HD-SDI 1x HDMI 2.0 (4K60) 1x 3.5mm 3-pin Stereo Headphone Jack
Power Input	1x 3-pin XLR (321W max, 27V-34V, 12A-9.4A) 1x Dual-GM/VM Batt. Plate (26V) sold separately
Power Output	2x 2pin (12V/2A combined) 2x USB (5V/2.4A) (Front/Rear) 1x USB-C (5V/1.5A)
Data I/O	1x SD Card Slot 1x RJ45 Ethernet 1x RJ45 GPI 1x WiFi antenna port
LUTs	33pt 3D-LUT on output/input
Dimensions	66.81 x 43.3 x 3.51cm
Weight	9.6kg, 21 lbs
Software PageOS	* Redesigned Color Pipe UI * Fleet Control Remote Access App Integration * Wifi Support for Monitor Control * Custom Exposure Assist * Pixel-Based Fine Adjustments for Tools * Integrated CalMAN Calibration Support * Trigger Tally with GPI * High Resolution Waveform
Special Features	* Quantum Dot OLED Display Panel * 1000nits Brightness (Peak @ 3% APL) * New Rotary Control Dials * Multiview of EOTFs/LUTs * Dual-GM/VM Battery Plates * 2x 2pin LEMO power output * 1x USB-C power output * 1x USB-A power output * PageOS Software
