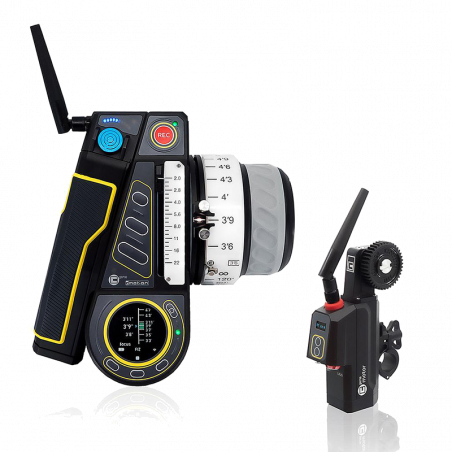

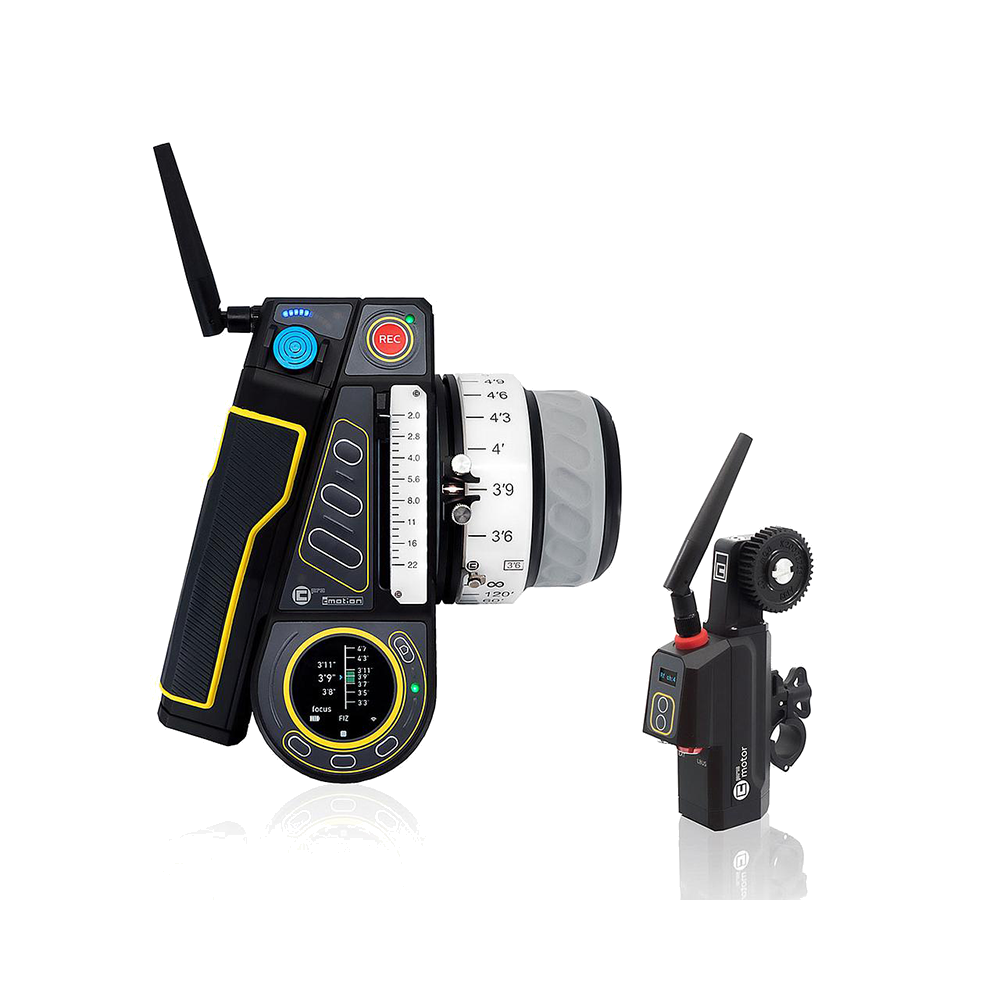

cPRO motor kit

CMOT-K2.0019828

cPRO motor kit

CMOT-K2.0019828
7.280 € tax excl.
€8,808.80
tax incl.
Have you seen it cheaper? Ask us for an offer!
Read more

For all products that are not in stock and / or cannot be added to the cart please contact us at info@cattscamera.com or through the contact form below.

Description

The cPRO handheld unit is the wireless hand control unit of the cPRO lens control system. Setting new standards in ergonomics and design, the cPRO hand unit is comfortable to use, robust and well balanced

The advanced focus knob has been designed for precision control with mechanical limits and a unique "Panic Button" function

The intuitive capacitive touch screen menu, thumb wheel and user assignable buttons provide quick access to some of cPRO's unique functions and features, while the selectable and adjustable backlighting makes cPRO ideal for environments ranging from bright sunlight to total darkness

Multiple mounting points have also been included to provide well-balanced solutions for monitors, etc.

Camera control features* are available from SW version 3.0 for selected ARRI, RED and SONY cameras.

* Requires optional license key

The cPRO motor for focus control is a new super-fast RF motor based on the popular and compact cforce mini. Incorporating the wireless module into the motor eliminates the need for a large, bulky motor box which helps reduce both weight and cost.

Through the LBUS connector, 3 additional force motors can be daisy-chained for a complete 3-axis system + optional auxiliary axis. The new CAM connector provides a versatile interface for power, start/stop control, camera feedback*, tally* and camera control** for popular cameras including ARRI, RED, SONY, CANON, BLACKMAGIC and PANAVISION.

The cPRO engine is compatible with cmotion's new cPRO and cPRO ONE handheld units. Two buttons on the motor allow channel selection (14 channels), scale adjustments, motor calibration, system information, screen flip and factory reset.

*Not available on all cameras

**Available for selected ARRI, RED and SONY cameras - optional license required.

La unidad manual cPRO es la unidad de control manual inalámbrica del sistema de control de lentes cPRO. Estableciendo nuevos estándares en ergonomía y diseño, la unidad manual cPRO es cómoda de usar, robusta y bien equilibrada.

El avanzado mando de enfoque ha sido diseñado para un control de precisión con límites mecánicos y una función única de "Botón de pánico".

El menú intuitivo de la pantalla táctil capacitiva, la rueda del pulgar y los botones asignables por el usuario proporcionan un acceso rápido a algunas de las funciones y características exclusivas de cPRO, mientras que la retroiluminación seleccionable y ajustable hace que cPRO sea ideal para entornos que van desde la luz solar brillante hasta la oscuridad total.

También se han incluido varios puntos de montaje para ofrecer soluciones bien equilibradas para monitores, etc.

Las características de control de cámara* están disponibles desde la versión 3.0 de SW para determinadas cámaras ARRI, RED y SONY.

* Requiere una clave de licencia opcional



El motor cPRO para mando de foco es un nuevo motor RF súper rápido basado en el popular y compacto cforce mini. La incorporación del módulo inalámbrico en el motor elimina la necesidad de una caja de motor grande y voluminosa que ayuda a reducir tanto el peso como el coste.

A través del conector LBUS, se pueden conectar 3 motores de fuerza adicionales en cadena para un sistema completo de 3 ejes + un eje auxiliar opcional. El nuevo conector CAM proporciona una interfaz versátil para la alimentación, control de marcha/parada, retroalimentación de la cámara*, recuento* y control de la cámara** para las cámaras más populares, incluyendo ARRI, RED, SONY, CANON, BLACKMAGIC y PANAVISION.

El motor cPRO es compatible con las nuevas unidades manuales cPRO y cPRO ONE de cmotion. Dos botones en el motor permiten la selección de canales (14 canales), ajustes de la escala, calibración del motor, información del sistema, giro de la pantalla y restablecimiento de la fábrica.

*No disponible en todas las cámaras

**Disponible para las cámaras ARRI, RED y SONY seleccionadas - se requiere licencia opcional.

cPRO hand unit SPECIFICATIONS:



Weight

appx. 0,89 kg (< 31 1/2 oz) (incl. battery and antenna)

Length

159,6 mm (approx. 6 inches)

width

96,5 mm (< 4 inches)

height

164,3 mm (< 6 1/2 inches)

wireless frequency

2.4 Ghz

wireless range

depending on region setting 700 - 1.000 meters (2,296 - 3,280 feet)

wireless channels

14 channels (cmotion red RF)

environmental requirements

-20° to 50° C (-4° to 122° F)

display

capacitive touch round 1.22’’ TFT

transmission delay

<10ms

battery type

NP-FM500H, 7,2V, 2040mAh

USB power bank

controls

knob, slider, joystick, thumb wheel

connectors

1x Le 4p (LBUS)

1x USB

buttons

9

button functions

6 soft buttons & 3 pre-assigned

hardwired operation possible

Yes

independent wireless control units

up to 3 cPRO or cPRO ONE hand units

maximum axis control

up to 4 axis

lens data - create, save and display

Yes

set torque, direction and ramping of motor

Yes

set digital lens limits

Yes

set digital knob limits

Yes

automatic motor calibration

Yes

manual motor calibration

Yes

run/stop function

ARRI, Red, Panavision, Sony, Black Magic, Canon

save settings

on USB or on device

camera control

for selected ARRI, RED and SONY cameras (license key required)

software update

through USB

compatible motors

cPRO motor / cforce / cforce mini / cforce plus / Cinefade VariND

compatible components

cPRO camin,

steady zoom, pan-bar zoom, cfinder III, LCUBE, Master Grips

fasting options

multiple 1/4' -20 UNC threads

cstrap connector

Yes



cPRO motor SPECIFICATIONS:



weight

appx. 0,89 kg (< 31 1/2 oz) (incl. battery and antenna)

length

159,6 mm (approx. 6 inches)

Width

96,5 mm (< 4 inches)

height

164,3 mm (< 6 1/2 inches)

wireless frequency

2.4 Ghz

wireless range

depending on region setting 700 - 1.000 meters (2,296 - 3,280 feet)

wireless channels

14 channels (cmotion red RF)

environmental requirements

-20° to 50° C (-4° to 122° F)

display

capacitive touch round 1.22’’ TFT

transmission delay

<10ms

battery type

NP-FM500H, 7,2V, 2040mAh

USB power bank

controls

knob, slider, joystick, thumb wheel

connectors

1x Le 4p (LBUS)

1x USB

buttons

9

button functions

6 soft buttons & 3 pre-assigned

hardwired operation possible

Yes

independent wireless control units

up to 3 cPRO or cPRO ONE hand units

maximum axis control

up to 4 axis

lens data - create, save and display

Yes

set torque, direction and ramping of motor

Yes

set digital lens limits

Yes

set digital knob limits

Yes

automatic motor calibration

Yes

manual motor calibration

Yes

run/stop function

ARRI, Red, Panavision, Sony, Black Magic, Canon

save settings

on USB or on device

camera control

for selected ARRI, RED and SONY cameras (license key required)

software update

through USB

compatible motors

cPRO motor / cforce / cforce mini / cforce plus / Cinefade VariND

compatible components

cPRO camin,

steady zoom, pan-bar zoom, cfinder III, LCUBE, Master Grips

fasting options

multiple 1/4' -20 UNC threads

cstrap connector

Yes



*Los datos técnicos están sujetos a cambios sin previo aviso. © cmotion 2020

El Kit de motor cPRO, incluye (Componentes principales):



- cPRO hand unit incl.: Swivel antenna plain white focus ring plain white iris strip



- cPRO motor incl.: Swivel antenna gear 0.8 motor clamp console 19/15 mm

  * cstrap

  * 2x cPRO battery (NP-FM500H)

  * cPRO battery charger (EU plug)



- cmotion travel case



- Cables: - K2.0006758 Cable LBUS - D-Tap
