21.5" High Bright HDR Monitor, 1000nits, 12-bit process, 8-bit LCD

SWIT-FM-21HDR

21.5" High Bright HDR Monitor, 1000nits, 12-bit process, 8-bit LCD

SWIT-FM-21HDR
1.851 € tax excl.
Have you seen it cheaper? Ask us for an offer!
Read more

For all products that are not in stock and / or cannot be added to the cart please contact us at info@cattscamera.com or through the contact form below.

21.5-inch 1000nit LCD

The FM-21HDR monitor adopts a 21.5 inch LCD panel with LED backlight, 1000nits high brightness.

The native resolution is Full HD 1920×1080, contrast 1000:1, and viewing angle is Horizontal: 178° / Vertical: 178°.

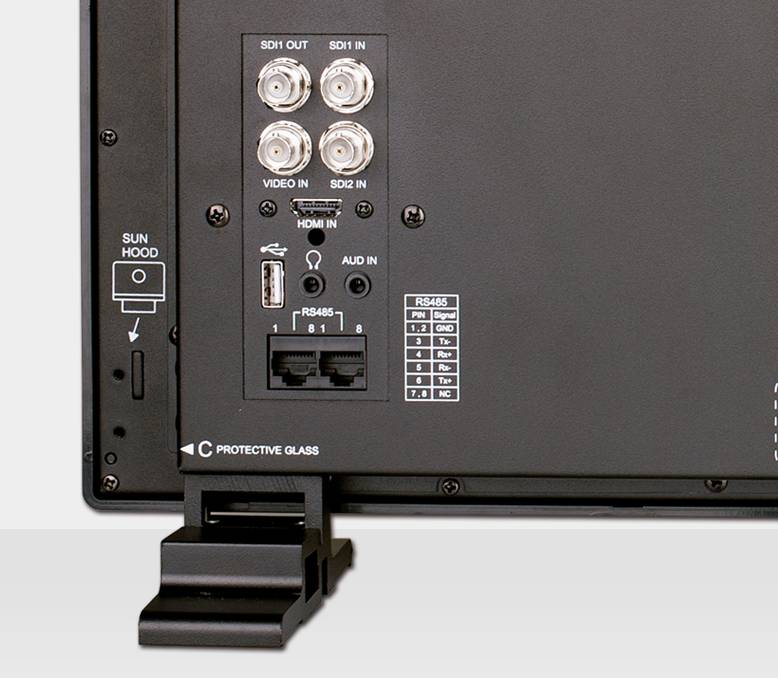

Input/Output Interfaces

3G-SDI, HDMI

FM-21HDR monitor supports:

     - 2x 3G/HD/SD-SDI input.

     - 1x 3G/HD/SD-SDI loop output.

     - 1x HDMI 1.3 input.

     - 1x 3.5mm analog audio input.

     - 1x 3.5mm analog audio output.

     - 1x RS485 UMD input.

     - 1x RS485 UMD output.

     - 1x USB-A LUT/Firmware input.

Built-in HDR/SDR LUTs

With 1000nit high brightness, FM-21HDR provides multi-camera logs to HLG/PQ HDR or Rec709 SDR monitoring, including: Log-C, S-log2/3, C-log2/3, V-log, RED log etc.

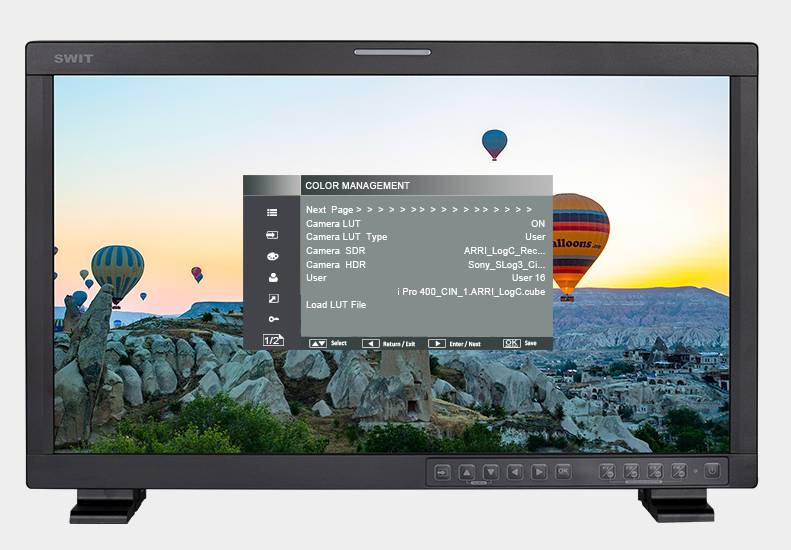

User LUTs Upload

You can upload User 3DLUT cube or Re-calibrated 3DLUT cube by USB disk. (17x17x17 or 33x33x33 cubes, USB file system FAT32, Max 16x User LUTs can be restored).

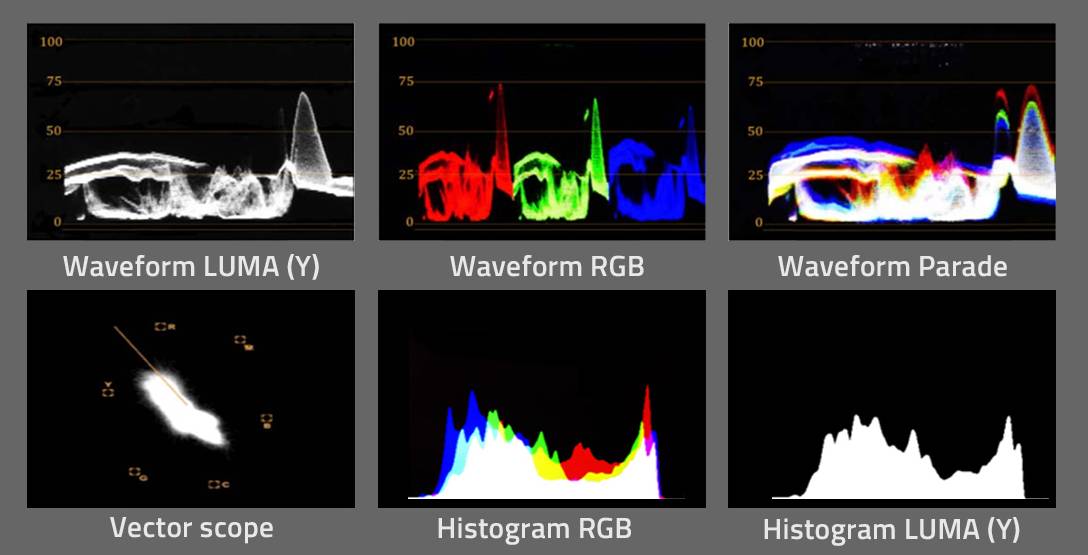

Video Analysis Assistant Pattern

Waveform / Vector scope / Histogram

FM-21HDR supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring

Up to 16-ch meters

The monitor can display 16-ch embedded audio meters.

The display mode can be:

     - CH1-2.

     - CH1-16.

     - CH1-4 and CH5-8.

     - CH1-4 and CH9-12.

     - CH1-4 and CH13-16.

     - CH5-8 and CH9-12.

     - CH5-8 and CH13-16.

     - CH9-12 and CH13-16.

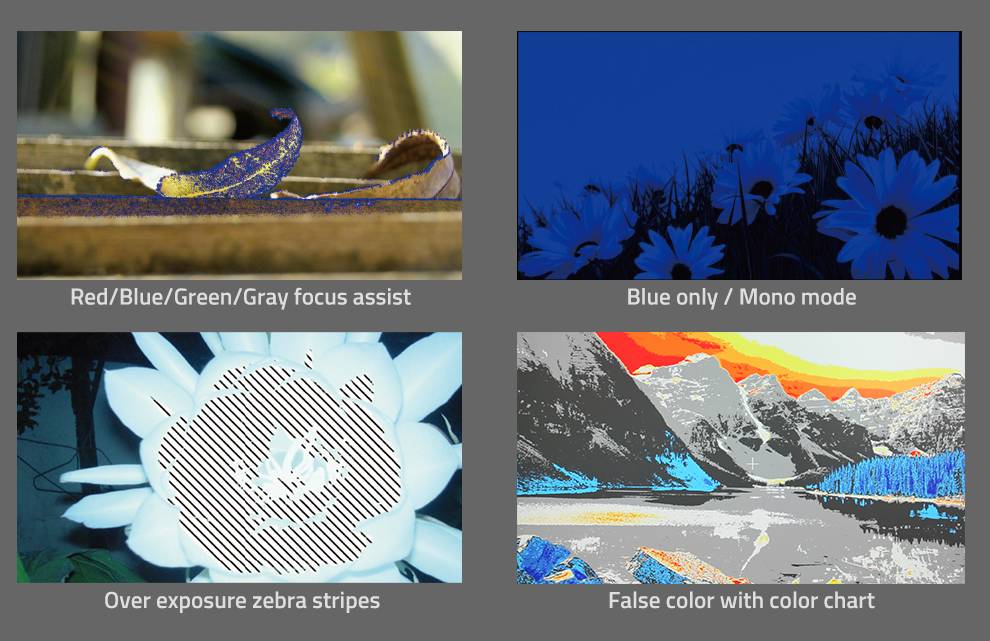

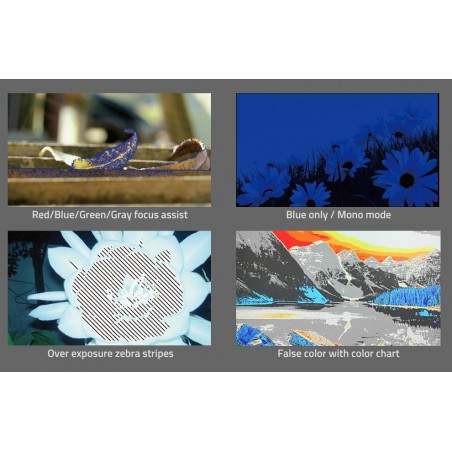

Video Tools

Function Keys Assign

4 User Presets of Function Keys restore

There’re 4 F-keys to assign different functions, and you can make independent assignments and restore in 4 User Profiles.

Long Press F1/U1, F2/U2, F3/U3, F4/U4 button to recall User 1/2/3/4 with different F1/2/3/4 assignments.

TSL UMD and TALLY

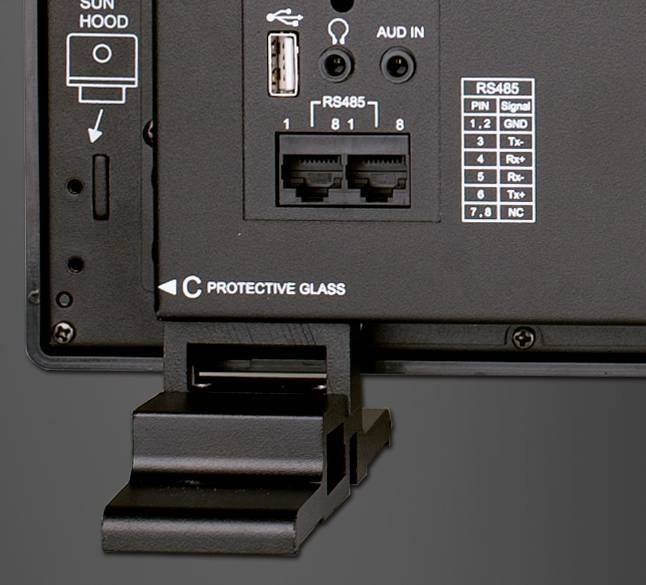

FM-21HDR supports TSL 3.1 and 4.0 protocol UMD display and front TALLY light via RJ45 (RS485) port in the rear panel, input and output.

Various Power Input

V-mount / 4-pin XLR / AC

FM-21HDR provides 11-17V 4-pin XLR input and 100-240V AC input.

A V-mount plate is pre-installed so that you can attach V-mount battery to power the monitor via D-tap to 4-pin XLR cable.

The power consumption is 55W.

LCD Performance

     - Size: 21.5 inches

     - Display area: 476.64×268.11mm

     - Resolution: 1920×1080

     - Aspect ratio: 16:9

     - Brightness: 1000cd/m2

     - Contrast: 1000:1

     - Color: 16.77 million colors

     - Viewing angle: Horizontal: 178°; Vertical: 178°

Input

     - BNC ×2: 3G/HD/SD-SDI input

     - BNC ×1: CVBS input

     - HDMI ×1: HDMI 1.3 input

     - 3.5mm ×1: Analog audio input

     - USB ×1: User LUTs upload and Firmware upgrade

     - RS485 ×1: TSL 3.1/4.0 input

Output

     - BNC ×1: 3G/HD/SD-SDI loop output

     - 3.5mm ×1: SDI, HDMI embedded audio and analog output

     - RS485 ×1: TSL 3.1/4.0 output

Video Format

     - SDI:

          - 1080p (60 / 59.94 / 50)

          - 1080i (60 / 59.94 / 50)

          - 1080p (30 / 29.97 / 25 / 24 / 23.98)

          - 1035i (60 / 59.94)

          - 1080psf (30 / 29.97 / 25 / 24 / 23.98)

          - 720p (60 / 59.94 / 50)

          - 480i (59.94)

          - 576i (50)

     - HDMI:

          - 480i/ 576i / 480p / 576p

          - 1080i (60 / 59.94 / 50)

          - 720p (60 / 59.94 / 50)

          - 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

     - Input voltage: DC / battery 11V-17V 3A, AC 100-240V, 50/60Hz

     - Power consumption: 55W

     - Working temperature: 0°C~+50°C

     - Working humidity: 10%~90%

     - Storage temperature: -15°C~+60°C

     - Storage humidity: 10%~90%

     - Dimensions: 517×319×74.3mm

     - Net weight (main body): Net 5.7kg.

1x FM-21HDR 21.5-inch High Bright HDR Film Production Monitor

1x Sun hood

1x LCD Protective Glass

1x Desktop feet

1x D-tap to 4-pin XLR Cable

1x V-mount plate
