7" LCD Monitor SDI/HDMI, S-1071H+

SWIT-S-1071H+

7" LCD Monitor SDI/HDMI, S-1071H+

SWIT-S-1071H+
609 € tax excl.
tax incl.
Have you seen it cheaper? Ask us for an offer!

7" LCD Monitor SDI/HDMI, S-1071H+

Read more

For all products that are not in stock and / or cannot be added to the cart please contact us at info@cattscamera.com or through the contact form below.

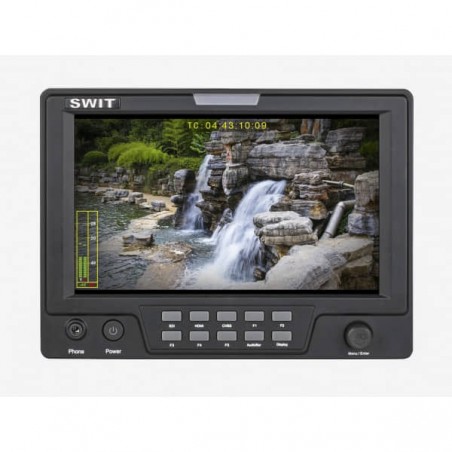

7-inch LCD Panel

FFS-IPS panel with LED backlight.

The S-1071H+ adopts a 7-inch FFS-IPS LCD panel, with 1024×600 high resolution and LED backlight, 900:1 contrast, 8-bit color depth, H/V 160° viewing angle.

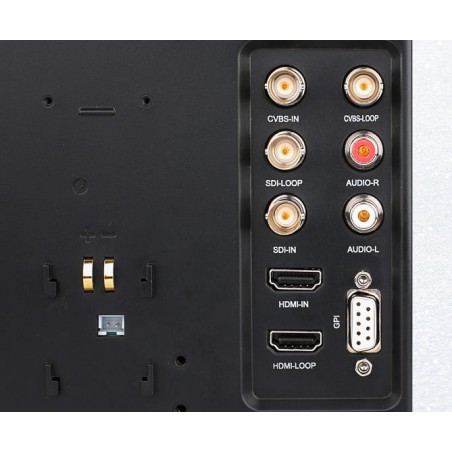

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio.

S-1071H+ monitor supports:

     - 1x 2K/3G/HD/SD-SDI input

     - 1x 2K/3G/HD/SD-SDI loop output.

     - 1x HDMI input.

     - 1x HDMI loop output.

     - 1x CVBS input.

     - 1x CVBS loop output.

     - 1x RCA analog audio input L and R.

     - 1x RS232 GPI/TALLY input.

Embedded audio monitoring

2-ch meters with alert.

S-1071H+ supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info.

The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

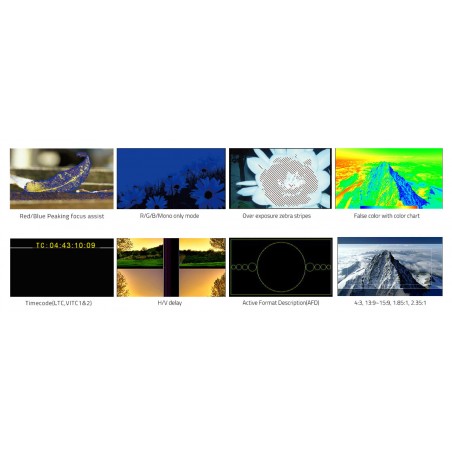

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

S-1071H+ supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed.

The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

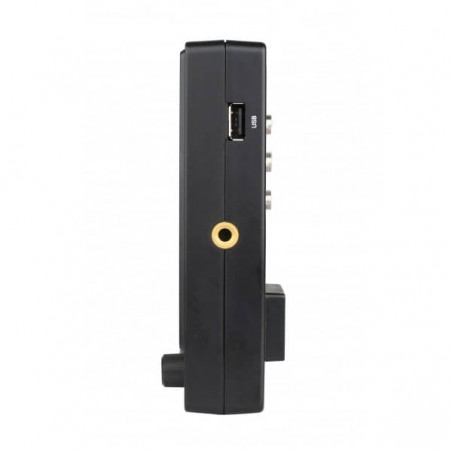

The monitor provides a standard USB port on the rear panel, for firmware upgrade.

Users can download the latest firmware file to a USB stick, and directly insert into S-1071H+ monitor to upgrade, without PC connection.

Front & Rear TALLY Light

There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RS232 port to control the TALLY lights.

Multiple Power Sources

The monitor provides a 4-pin XLR socket of DC 6.5-17V power input, and can be fixed on V-mount, Gold mount or DV battery plate.

Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other.

Baterías compatibles con el plate:

     - S-7004A: Gold mount batteries.

     - S-7004: V-mount batteries.

     - S-7004F: SONY NP-F970/770.

     - S-7004U: SONY BP-U60/U30.

     - S-7004D: Panasonic D54/D28, Panasonic VW-VBD58, AG-VBR59.

     - S-7004B: Panasonic VW-VBG6.

     - S-7004V: JVC BN-VF823.

     - S-7004I: SSL-JVC50.

     - S-7004C: Canon BP-945/970G.

     - S-7004E: Canon LP-E6.

Sun Hood

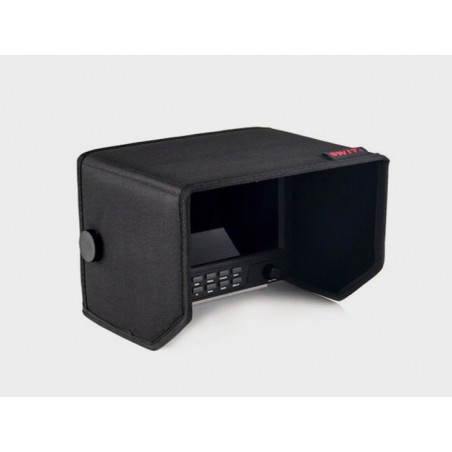

For outdoor using, you can apply a sun hood on the monitor.

The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.

The sun hood is provided in the monitor package.

LCD Performance

     - Size: 7 inches

     - Display area: 153.6×90mm

     - Resolution: 1024×600

     - Aspect ratio: 16:9 (4:3 adjustable)

     - Brightness: 400nit

     - Contrast: 900:1

     - Color: 16.77 million colors

     - Viewing angle: Horizontal: 160°; Vertical: 160°

Input

     - NC ×1: 2K/3G/HD/SD-SDI input

     - BNC ×1: Composite input

     - HDMI ×1: HDMI input

     - RCA ×2: Analog audio input L ×1 R×1

Output

     - BNC ×1: 2K/3G/HD/SD-SDI loop output

     - BNC ×1:Composite loop output

     - HDMI ×1: HDMI loop output

     -  3.5mm ×1: SDI, HDMI, Analog audio output

Video Format

     - SDI:

          - 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

          - 2048×1080i (60 / 59.94 / 50)

          - 1080p (60 / 59.94 / 50)

          - 1080i (60 / 59.94 / 50)

          - 1080p (30 / 29.97 / 25 / 24 / 23.98)

          - 1080psf (30 / 29.97 / 25 / 24 / 23.98)

          - 720p (60 / 59.94 / 50)

          - 480i (59.94)

          - 576i (50)

     - HDMI:

          - 480i/ 576i / 480p / 576p

          - 1080i (60 / 59.94 / 50)

          - 720p (60 / 59.94 / 50)

          - 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

          - 1080psf (30 / 29.97 / 25 / 24 / 23.98)

     - CVBS: PAL / NTSC

General

     - Input voltage: DC / battery 6.5V-17V

     - Power consumption: ≤10W

     - Working temperature: 0°C~+40°C

     - Working humidity: 10%~90%

     - Storage temperature: -15°C~+60°C

     - Storage humidity: 10%~90%

     - Dimensions: 192×139×47mm

     - Net weight (main body): 550g

1x S-1071H+ 7" Monitor LCD.

1x LCD Protective Film.

1x Cold shoe and 1/4" ball head.

1x S-7004 battery plate (S/A/U/F/D/B/V/I/C/E selection).

1x AC-DC Adaptor.

1x Sun hood.
